EDU System | Passive Modules |
Inductive Capacitive Loads
PEM.EDU.IND.CAP.ACFILM.1.A. XX.X.X.XXX XXXX.XXXXX
Description:

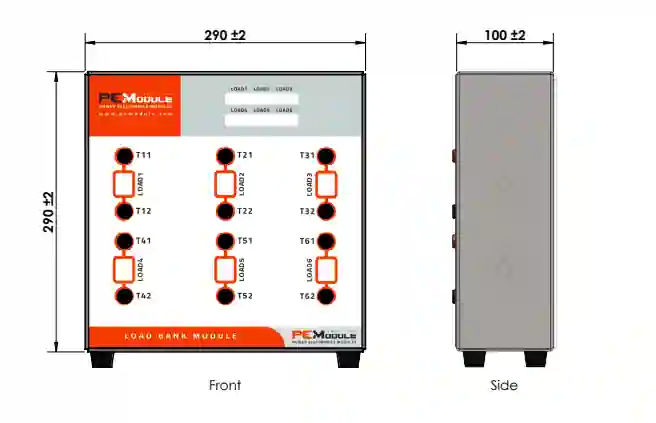

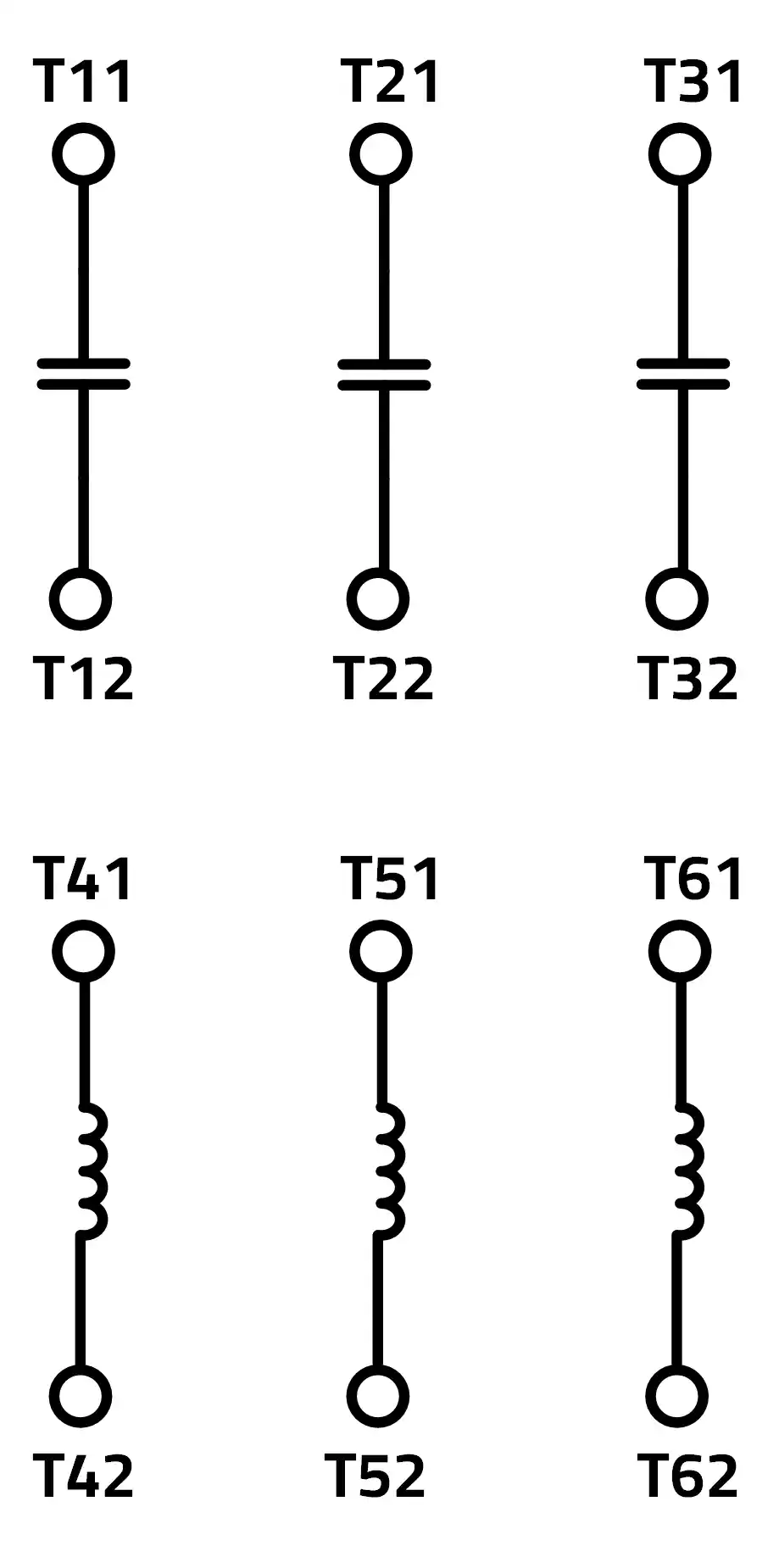

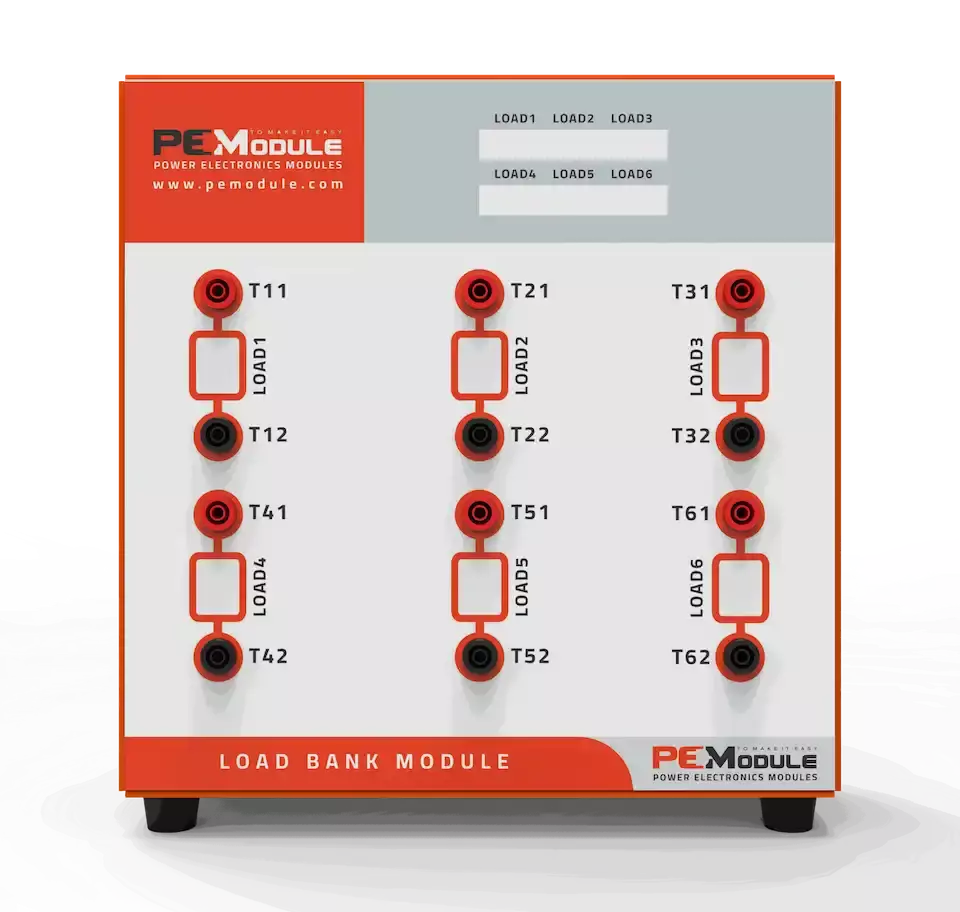

PEModule PLUGY EDU INDUCTIVE/CAPACITIVE LOAD module is comprised of three high-frequency inductors and three high performance AC film capacitors for different configuration and connection coverage different applications.
Main Features:
- Appropriate for AC three-phase capacitive load.
- Appropriate for AC three-phase inductive load.
- Appropriate for AC single-phase capacitive Load with different parallel configurations.
- Appropriate for DC/AC single-phase inductive Load with different series inductance and parallel capacitance configurations.
- Appropriate for AC three-phase low pass filter.
- Appropriate for AC single-phase low pass filter.
- Three separate AC film capacitors for different configurations, and three separate inductors for different configurations.
- Clear transparent back cover for system components demonstration.
- Upgradable (easy to replace).
- Heavy duty compact size steel enclosure for high durability and easy to move.
Follow us
Capacitor Characteristics
Capacitor Characteristics
| Part no. | C (μF) | VAC Max(V) |
|---|---|---|
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00010 | 10 | 450 |
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00015 | 15 | 450 |
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00020 | 20 | 450 |
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00030 | 30 | 450 |
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00040 | 40 | 450 |
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00005 | 5 | 450 |
| PEM.EDU.IND.CAP.ACFILM.1.A. xx.x.x.xxx 0450.00007 | 7.5 | 450 |
Inductor Characteristics
Inductor Characteristics
| Part no. | H Initial (μH) | H @IDC Max (μH) | IDC Max (A) |
|---|---|---|---|
| PEM.EDU.IND.CAP.ACFILM.1.A. 07.0.0.100 xxxx.xxxxx | 100 | 63 | 7 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 05.8.0.220 xxxx.xxxxx | 220 | 124 | 5.8 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 05.2.0.330 xxxx.xxxxx | 330 | 174 | 5.2 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 03.8.0.470 xxxx.xxxxx | 470 | 271 | 3.8 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 03.4.0.680 xxxx.xxxxx | 680 | 370 | 3.4 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 02.4.1.000 xxxx.xxxxx | 1000 | 593 | 2.4 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 07.0.0.100 xxxx.xxxxx | 100 | 63 | 7 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 07.0.0.200 xxxx.xxxxx | 200 | 126 | 7 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 05.2.0.660 xxxx.xxxxx | 660 | 348 | 5.2 |
PEM.EDU.IND.CAP.ACFILM.1.A. 03.8.0.940 xxxx.xxxxx | 940 | 542 | 3.8 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 02.4.2.000 xxxx.xxxxx | 2000 | 1183 | 2.4 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 03.4.1.360 xxxx.xxxxx | 1360 | 740 | 2.4 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 07.0.0.300 xxxx.xxxxx | 300 | 189 | 7 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 05.8.0.660 xxxx.xxxxx | 660 | 372 | 5.8 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 05.2.0.990 xxxx.xxxxx | 990 | 522 | 5.2 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 03.8.1.410 xxxx.xxxxx | 1410 | 813 | 3.8 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 03.4.2.040 xxxx.xxxxx | 2040 | 1110 | 3.4 |
| PEM.EDU.IND.CAP.ACFILM.1.A. 02.4.3.000 xxxx.xxxxx | 3000 | 1779 | 2.4 |
